Products Description
portable water cannon

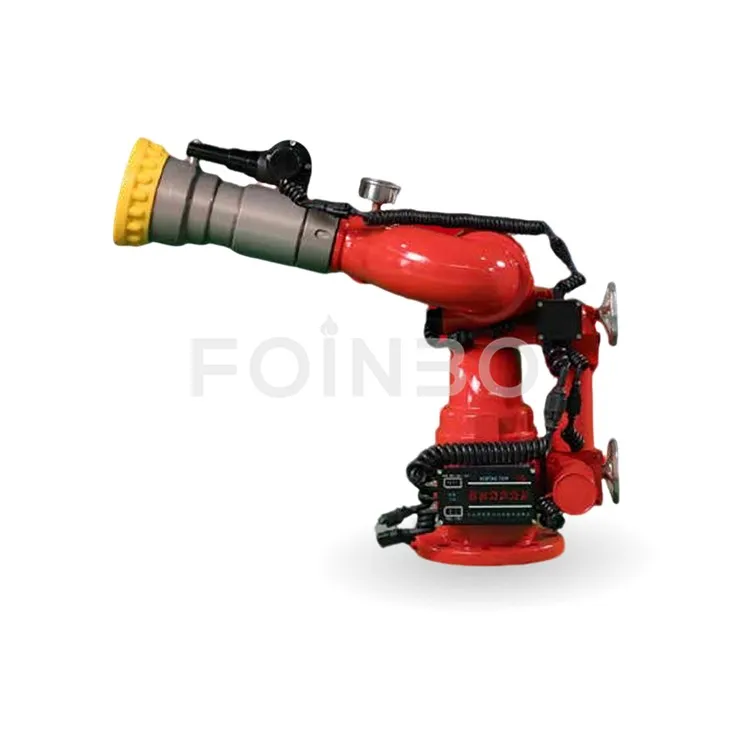

Foinbo PSKD8/50W Industrial Fire Monitor is a robust, explosion-proof firefighting Water Monitor designed for high-risk industrial environments. Equipped with an explosion-proof motor, it offers fixed-flow 50L/S to combat various fires. It features full 360° horizontal rotation and a vertical tilt range of -36° to +75°, ensuring precise directional control for maximum coverage.
Remote Electric Control
The monitor is operated by electric motors for horizontal rotation, vertical elevation, and nozzle pattern adjustment. Operators can control the system from a remote control panel, wireless controller, or integrated fire alarm system.
2. Fixed Installation
Unlike portable monitors, this type is permanently mounted on pipelines, platforms, towers, fire trucks, or industrial fire protection systems, ensuring immediate response when needed.
3. Large Flow Capacity
Typical flow rates range from 600 LPM to 12,000+ LPM, depending on the application. It supports both water and foam firefighting operations.
4. Wide Rotation Range
Horizontal rotation: typically 0° to 360°
Vertical movement: typically -45° to +90°
Products Parameters
|
Model Number |
Flow Rate |
W.Pressure |
Max. Reach |
Dimension |
| PSKD8/50W | 3000L/Min | 8 bar | ≥70 m | 730x340x550 |
FAQ
Q: What extinguishing agents can be used?
Most fixed remote controlled monitors support:
Water
Foam-water mixture
Firefighting foam concentrate (with foam proportioning systems)
Dry chemical systems (special designs)
The selection depends on fire risks and system design.
Q: What control methods are available?
Common control options include:
Wired control panel
Wireless remote controller
PLC integrated control
DCS system integration
Automatic fire detection linkage
Infrared/UV flame detection auto-tracking systems
Some advanced systems offer fully automatic fire targeting.
Q: What is the typical flow range?
Flow capacity varies by model, commonly ranging from:
600 LPM
1200 LPM
1800 LPM
2400 LPM
3000+ LPM
Large industrial monitors may exceed 10,000 LPM for special applications.
Q: What is the effective throw distance?
Typical throw distances are:
Water: 50–150 meters
Foam: 45–100 meters
Actual performance depends on pressure, nozzle type, and environmental conditions.
Q: What materials are commonly used?
Common materials include:
Aluminum alloy
Hard anodized aluminum
Bronze
Stainless steel 304
Stainless steel 316
Carbon steel with anti-corrosion coating
Material selection depends on the installation environment, especially for marine or corrosive conditions.
