Production introduction

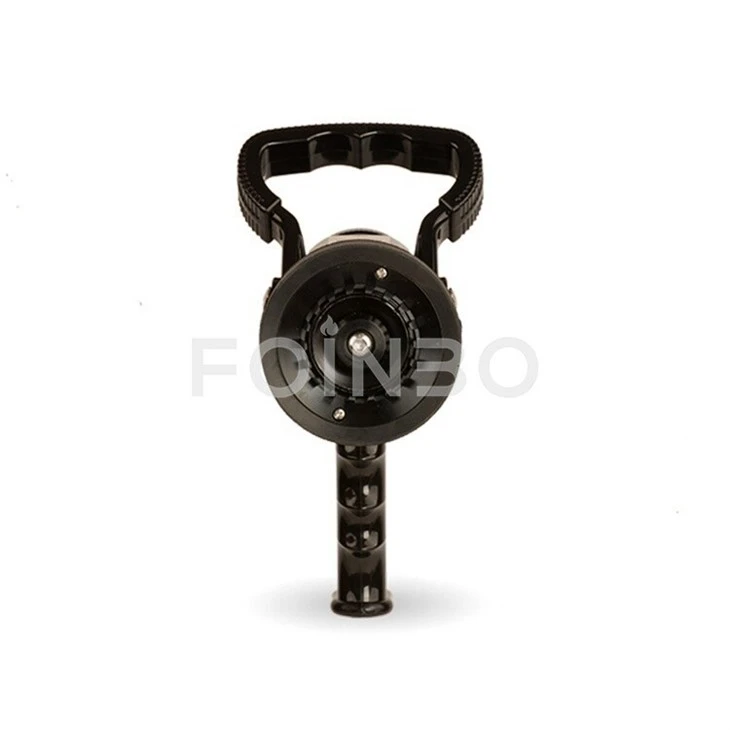

The foinbo® forestry fire nozzle is an indispensable piece of equipment specifically designed to tackle the unique challenges posed by wildland fires. These fires often occur in remote, rugged terrain with limited access to water sources, making efficient and effective fire - suppression tools crucial.
One of the key features of a forestry fire nozzle is its lightweight and portable design. Since firefighters need to carry their equipment over long distances through difficult terrain, the nozzle is made from lightweight yet durable materials such as high - strength aluminum alloys. This ensures that it can withstand the physical demands of the job without adding excessive weight to the firefighter's load.
The nozzle is engineered to deliver a wide range of spray patterns. In the early stages of a wildfire, a wide - angle fog pattern is often used. This creates a large area of water coverage, helping to cool the surrounding vegetation and prevent the fire from spreading. As the fire intensifies, firefighters can switch to a more concentrated straight - stream pattern to target specific hotspots or reach flames that are further away.
Features& Key Uses
Features
- Flow Rate: 50-150-200-230 LPM,Selectable;
- Material: Aluminium alloy,hard anodized;
- Jetting Pattern: Straight stream,Narrow fog,Wide fog;
- Coupling Standard: NH,INST,Storz,GOST,Machino,etc.
Key Uses
- Fire & Rescue Services
- Defence
- Oil & Gas
- Marine
- Major Industrials
- Aviation
- Mining
- Nuclear

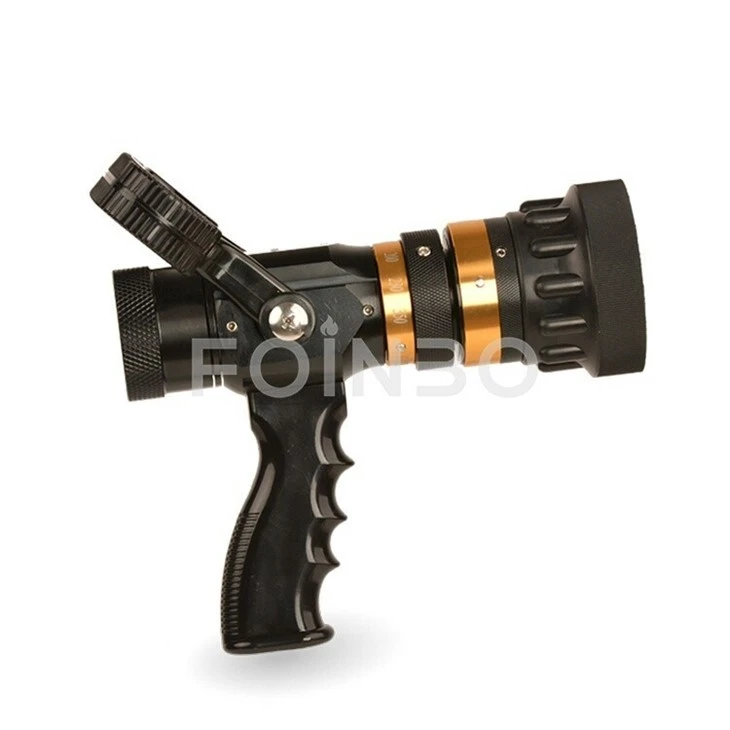

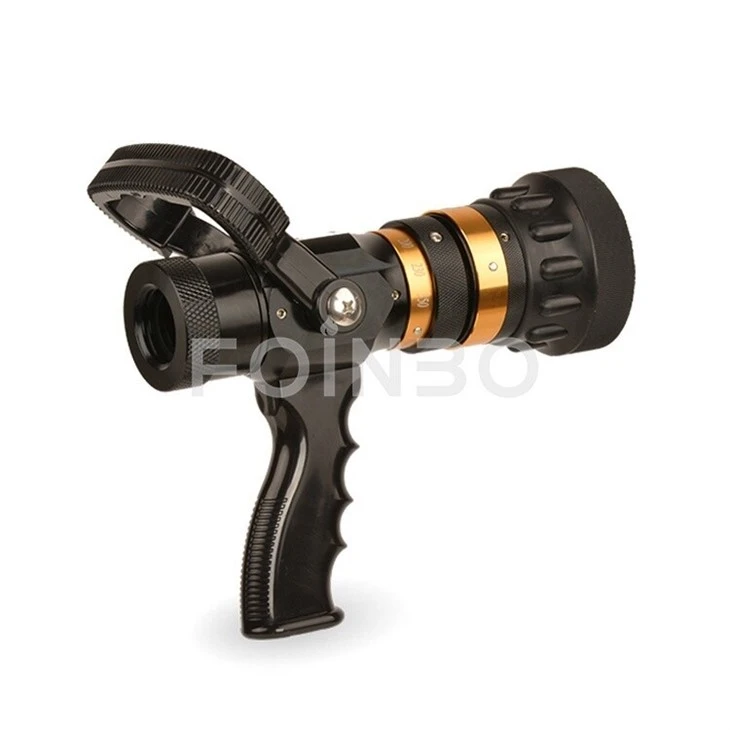

Detail Pirctures
Jetting Pattern: Straight stream,Narrow fog,Wide fog;
Flow Rate: 150-200-230-350 LPM, Selectable;
Coupling Standard: NH,INST,Storz,GOST,Machino,etc.
Products parameters
| Model | Flow Rate |
W.Pressure |
Max. Fog Angle |
Inlet Size |
|
S230 |
50-150-200-230 LPM, Selectable |
6 bar |
110° |
1"/ 1.5"/ 2"/ 2.5" |
FAQ
Q: What is the primary role of a jet nozzle in firefighting?
A: To deliver pressurized water or foam in targeted streams to suppress flames and cool hotspots.
Q: How does a jet nozzle differ from a regular garden hose nozzle?
A: It withstands higher pressure, has adjustable spray patterns, and is designed for heavy-duty firefighting use.
Q: What two main spray patterns can a typical jet nozzle produce?
A: A straight jet (for long-range penetration) and a fog pattern (for wide-area coverage).
Q: How does pressure affect the reach of a jet nozzle's straight stream?
A: Higher pressure increases the stream's velocity and distance (up to 40 meters under 10 bar).
Q: In which scenario is a fog pattern most critical?
A: Wildfires or hazardous material spills where vapor suppression and cooling are needed.
