Production introduction

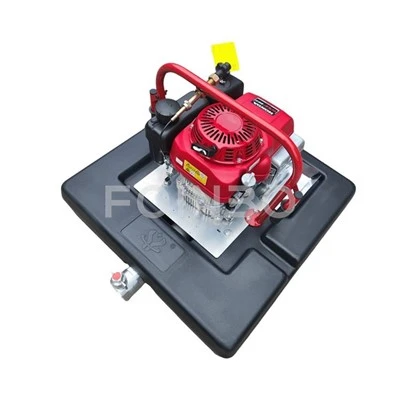

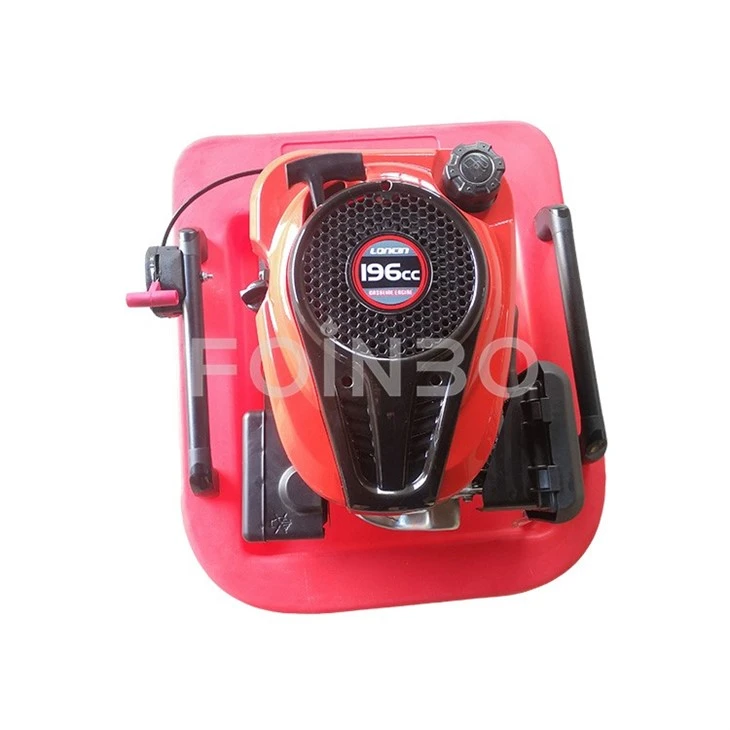

The Air-cooled Floating Fire Pump delivers consistent water supply for outdoor emergency firefighting, drawing water directly from natural water bodies without relying on land-based cooling facilities. This Air-cooled Floating Fire Pump is equipped with a Loncin 7hp four-stroke gasoline power unit that removes the need for external water circulation cooling systems. It reaches a maximum flow of 900L/M and a pump head of 50 meters, enabling this Air-cooled Floating Fire Pump to deliver pressurized water over long hoses toward fire frontlines. The simple recoil starting system allows crews to launch this Air-cooled Floating Fire Pump into operation rapidly once deployed onto ponds, streams or reservoirs.
This Air-cooled Floating Fire Pump maintains stable power output even under sustained heavy loads. Its air-cooled structure dissipates engine heat through circulating airflow, eliminating risks of shutdown caused by insufficient cooling water during remote field missions. The complete unit weighs just 26kg and features compact dimensions, making manual transportation across rugged terrain effortless. It comes with matched 65mm inlet and outlet ports compatible with standard fire hoses, so this Air-cooled Floating Fire Pump connects to suppression equipment without extra conversion fittings. The integrated buoyant platform stays balanced amid mild ripples to guarantee uninterrupted water intake.
Products Parameters
|
Model |
FTQ3.0/8-L |
|
Engine type |
Air-cooled,4-stroke,single-cylinder, gasoline |
|
Engine model |
Loncin LC1P70F 7hp engine |
|
Starting way |
Recoil |
|
Max flow |
900L/M |
|
Rated pressure |
0.3Mpa |
|
Rated flow |
8L/S |
|
Pump head |
50m |
|
Inlet |
65mm |
|
Outlet |
65mm |
|
Weight |
26KG |
|
Appearance size |
650*550*450mm |
Application Scenarios Detail
- Hot Season Wildfire Suppression in Arid Woodlands: In dry mountain regions lacking abundant cooling water, crews deploy the pump on mountain ponds. The air-cooled structure prevents overheating during long shifts of wildfire interception.
- Inland Small Waterway Emergency Rescue: At river wharves and fishing harbors, the pump floats on the water surface to supply firefighting water for barges and shore facilities, working steadily under high ambient temperatures in summer.
- Remote Off-Grid Farm Fire Protection: For agricultural zones far from municipal infrastructure, the pump extracts water from farm reservoirs to defend barns and granaries, without requiring extra cooling water for normal operation.
Products Description
FAQ
Q: What key advantages does the air-cooled structure bring to this floating fire pump compared with water-cooled versions?
A: It requires no supporting cooling water pipeline. Operators do not need to prepare extra cooling water during deployment, which greatly simplifies preparation work for remote emergency missions.
Q: What maintenance work should be done for the air cooling system before long-duration firefighting tasks?
A: Clear dust, dry leaves and debris blocking the engine cooling fins and air filter regularly, to guarantee smooth airflow and avoid abnormal temperature rise.
Q: Can this Air-cooled Floating Fire Pump operate stably under high-temperature summer field environments?
A: It can work continuously under high ambient temperatures, provided the cooling air inlet keeps unobstructed. Avoid long-time direct exposure to blazing sunlight if possible.
Q: Will repeated startup in high-temperature conditions affect the service life of the air-cooled engine?
A: Short rest intervals are recommended between frequent starting attempts. Allow residual heat to disperse, which can reduce wear and extend the engine's service cycle.
Q: Is there any limit to the water quality of natural water sources where this pump absorbs water?
A: Raw water with excessive sediment and aquatic weeds is not recommended. Install a matched filter screen at the inlet to prevent impeller clogging and protect internal pump components.
