Production introduction

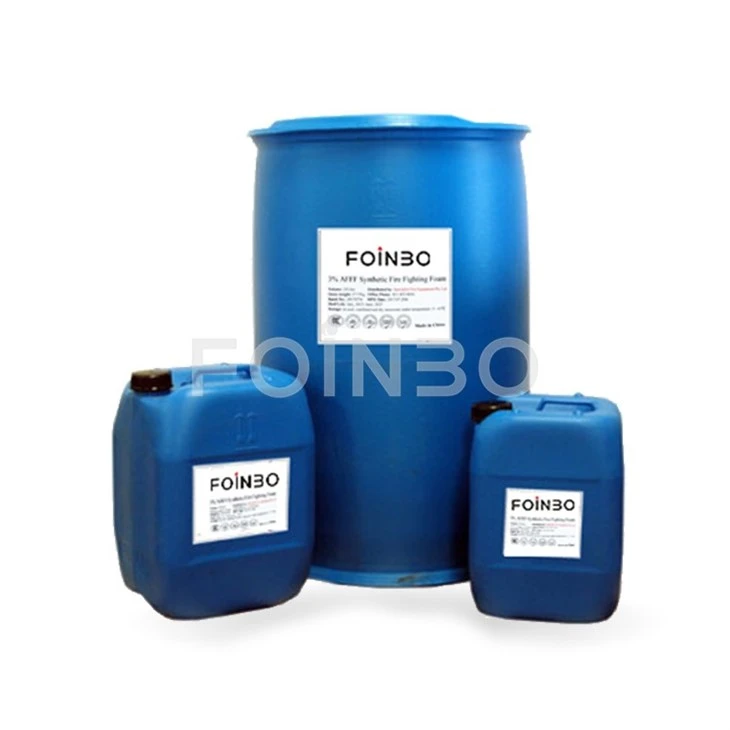

The 200L packaging of foinbo® Foam Concentrate High Expansion 200L is engineered for industrial usability and safety. Made from food-grade HDPE material, the barrel is corrosion-resistant and leak-proof, compatible with standard industrial fire-fighting delivery systems-such as pipeline proportioners and high-pressure transfer pumps. This eliminates the need for manual pouring (a common pain point with small barrels) and reduces the risk of spillage or contamination during use.
Meanwhile, the product inside retains the core performance of foinbo's high-expansion foam concentrate: with an expansion ratio of ≥420 and a 50% drainage time of 13–18 minutes, a single 200L barrel, when mixed with water at the 3% ratio, can generate enough foam to cover a 1,200+ square meter enclosed space-making foinbo® Foam Concentrate High Expansion 200L a cost-effective choice for large-space fire prevention.
In practical application, foinbo® Foam Concentrate High Expansion 200L excels in "long-duration fire support" scenarios. For example, in a large chemical warehouse fire, the fixed fire suppression system may need to continuously supply foam for 30+ minutes to fully smother flames and prevent re-ignition. The 200L bulk packaging can be directly connected to the system's storage tank, ensuring a steady flow of concentrate without the need for on-site staff to repeatedly load small barrels. This not only improves fire-fighting efficiency but also reduces the exposure risk of personnel in high-temperature or toxic fire environments.
Products Parameters
|
Model |
G 3% (-15℃) |
G 3% (-22℃) |
|
Appearance |
Colorless Luqid |
|
|
PH |
8.9-9.0 |
6.6-7.3 |
|
Viscosity @ 20℃ |
≤30 MPas |
≤30 MPas |
|
Expansion Ratio |
≥565 |
≥420 |
|
50% Drainage Time |
18( 1±20% ) min |
13( 1±20% ) min |
|
Freezing Point |
-15℃ |
-22℃ |
Products Description
FAQ
Q: Do I need special tools to handle foinbo® Foam Concentrate High Expansion 200L?
A: Yes, it is recommended to use a forklift (with a barrel clamp) or a handling cart with a lifting ring. Since foinbo® Foam Concentrate High Expansion 200L weighs about 200kg when full, manual handling is not only inefficient but also risky for barrel damage. The barrel is designed with standard lifting points to match common industrial handling tools, ensuring safe movement without affecting the performance of foinbo® Foam Concentrate High Expansion 200L.
Q: How long can foinbo® Foam Concentrate High Expansion 200L be stored after opening?
A: After opening, if the barrel mouth is sealed with a dedicated airtight cover (provided by foinbo) and stored in a cool, dry area (0–40℃), foinbo® Foam Concentrate High Expansion 200L can remain effective for up to 12 months. It is important to avoid leaving the barrel open for a long time, as dust or moisture may enter and affect the foam expansion ratio-this is especially critical for foinbo® Foam Concentrate High Expansion 200L, as its large volume means it may take longer to use up after opening.
Q: What type of transfer pump is suitable for foinbo® Foam Concentrate High Expansion 200L?
A: Industrial-grade gear pumps or diaphragm pumps (with corrosion-resistant components) are ideal. These pumps can connect directly to the 2-inch outlet at the bottom of the foinbo® Foam Concentrate High Expansion 200L barrel, ensuring smooth transfer without damaging the concentrate's chemical structure. Avoid using centrifugal pumps with high shear force, as they may reduce the expansion performance of foinbo® Foam Concentrate High Expansion 200L.
Q: Can foinbo® Foam Concentrate High Expansion 200L be stacked for storage?
A: Yes, the barrel's reinforced structure allows stacking up to 2 layers (with a pallet between layers). This space-saving design is particularly useful for facilities that need to stock multiple units of foinbo® Foam Concentrate High Expansion 200L for emergency reserves. However, do not stack more than 2 layers, as excessive weight may cause the bottom barrel to leak and damage the foinbo® Foam Concentrate High Expansion 200L inside.
Q: In an emergency, can foinbo® Foam Concentrate High Expansion 200L be quickly poured into small portable extinguishers?
A: Yes, using the dedicated pouring adapter (included with the barrel), foinbo® Foam Concentrate High Expansion 200L can be quickly transferred to small extinguishers. The adapter fits most 10–20L portable tank openings, allowing on-site mixing even when fixed systems are temporarily unavailable. This flexibility makes foinbo® Foam Concentrate High Expansion 200L suitable for both fixed-system supply and emergency portable use.
