Production introduction

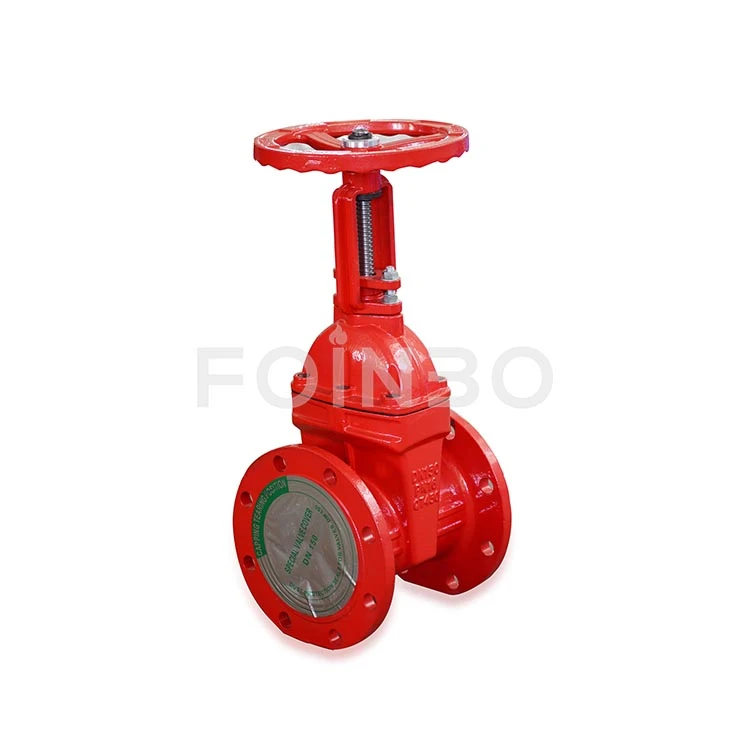

Foinbo® gate valve is a type of valve that is commonly used in industries such as oil and gas, chemical, and water treatment. It is designed to control the flow of fluid through a pipe by turning a handle or wheel that raises or lowers a metal gate in the valve body.
A 3 inch gate valve is a specific size of the valve that is suitable for use in pipelines that are three inches in diameter. It is a durable and reliable valve that is capable of withstanding high pressure and high temperatures, making it ideal for use in demanding industrial applications.
Gate valves are highly effective at controlling the flow of fluids through a pipeline, which makes them an essential component in many industrial processes. They can be used to isolate sections of a pipeline, regulate the flow of fluids, and prevent back flow.
Product specification
|
Specification |
Z41X-Flange OSY Gate Valve |
||||||||
|
2" |
2.5" |
3" |
4" |
5" |
6" |
8" |
10" |
12" |
|
|
Rated Operation Pressure |
1.6 Mpa |
||||||||
|
Strength Test Pressure |
4.8 Mpa |
||||||||
|
Application Medium |
Water, Foam Mixture |
||||||||
|
Connection Type |
Flange End |
||||||||
|
Valve Type |
OS&Y |
||||||||
|
Body Material |
Ductile Iron |
||||||||
FAQ
Q: What is a gate valve?
A: A gate valve is a type of valve used to control the flow of a fluid or gas by using a linear motion to push a gate or wedge between two stationary seats. They are commonly used in piping systems that require full flow control or isolation.
Q: What is the size of a 3 inch gate valve?
A: The size of a 3 inch gate valve refers to the diameter of the valve's inlet and outlet. In this case, it means the valve can fit a pipeline with a diameter of 3 inches.
Q: What material is a 3 inch gate valve made of?
A: 3 inch gate valves can be made of various materials, including brass, stainless steel, cast iron, and bronze. The material used depends on the application, media, and environmental factors.
Q: How does a 3 inch gate valve work?
A: A 3 inch gate valve operates by sliding a gate or wedge across the valve body to either block or allow fluid or gas to flow through. The gate's position is controlled by turning a handle or wheel that moves the stem, which is attached to the gate.
Q: Where are 3 inch gate valves used?
A: 3 inch gate valves are commonly used in applications that require large volumes of fluid or gas to be controlled, such as in oil and gas piping, water treatment plants, and power generation facilities.
