Foam concentrate is a critical component in fire - fighting systems, providing effective suppression for various types of fires, especially those involving flammable liquids and certain Class A fires. As a foam concentrate supplier, I have encountered numerous issues that customers face with foam concentrate in their fire - fighting systems. In this blog, I will share some common problems and how to troubleshoot them.
1. Foam Quality Issues
Poor Foam Expansion
One of the most common problems is poor foam expansion. Foam expansion is crucial as it determines the volume of foam produced from a given amount of foam concentrate and water mixture. When the foam does not expand properly, it may not cover the fire area effectively, reducing the fire - fighting efficiency.
Possible Causes
- Concentrate Dilution Ratio: Incorrect dilution of the foam concentrate can lead to poor expansion. If the concentrate is too diluted, there may not be enough active ingredients to form a stable and expansive foam. On the other hand, if it is too concentrated, the foam may be too thick and not expand as required. For example, some foam concentrates are designed to be used at a 3% or 6% ratio with water. Using a different ratio can cause problems.
- Water Quality: The quality of water used in the fire - fighting system can also affect foam expansion. Hard water, which contains high levels of minerals such as calcium and magnesium, can react with the foam concentrate and reduce its effectiveness. Additionally, water with a high level of contaminants, such as dirt or chemicals, can interfere with the foam - forming process.
- Temperature: Extreme temperatures can impact foam expansion. Cold temperatures can slow down the chemical reactions that cause foam to expand, while high temperatures can cause the foam to break down more quickly.
Troubleshooting Steps
- Check Dilution Ratio: Review the manufacturer's instructions for the correct dilution ratio of the foam concentrate. Use a flow meter or other measuring devices to ensure that the correct amount of concentrate is being mixed with water. For instance, if you are using Foinbo® High Expansion Foam Concentrate, follow the specific dilution guidelines provided.
- Test Water Quality: Conduct water quality tests to determine if the water is suitable for use with the foam concentrate. If the water is hard, consider using a water softener or a foam concentrate that is specifically formulated for use with hard water. If there are contaminants in the water, filter the water before it enters the fire - fighting system.
- Control Temperature: If possible, maintain the temperature of the foam concentrate and water mixture within the recommended range. In cold environments, use insulation or heating devices to keep the system warm. In hot environments, provide shade or cooling to prevent overheating.
Low Foam Stability
Foam stability refers to the ability of the foam to maintain its structure and integrity over time. Low foam stability can result in the foam breaking down quickly, leaving the fire area unprotected.
Possible Causes
- Age of the Foam Concentrate: Over time, the chemical properties of foam concentrate can change, leading to reduced stability. Foam concentrate that has been stored for too long may not perform as well as fresh concentrate.
- Contamination: Contamination of the foam concentrate can also cause low stability. This can occur if foreign substances, such as dirt, oil, or other chemicals, enter the storage container or the fire - fighting system.
- Incompatible Equipment: Using equipment that is not compatible with the foam concentrate can affect its stability. For example, some types of pumps or nozzles may shear the foam too much, causing it to break down.
Troubleshooting Steps
- Check Expiration Date: Always check the expiration date of the foam concentrate. If it has expired, replace it with fresh concentrate. For example, 1000L IBC Drum Foam Concentrate has a specific shelf - life, and using it beyond that can lead to performance issues.
- Inspect for Contamination: Regularly inspect the storage containers and the fire - fighting system for signs of contamination. If contamination is detected, clean the system thoroughly and replace the contaminated foam concentrate.
- Verify Equipment Compatibility: Ensure that all equipment in the fire - fighting system is compatible with the foam concentrate. Consult the manufacturer's recommendations for the appropriate equipment to use.
2. Delivery and Distribution Problems
Blocked Nozzles or Pipes
Blockages in the nozzles or pipes of the fire - fighting system can prevent the proper delivery of the foam concentrate and water mixture. This can result in uneven foam distribution or no foam being delivered at all.
Possible Causes
- Debris: Debris such as dirt, rust, or scale can accumulate in the pipes and nozzles over time, causing blockages. This is especially common in older fire - fighting systems or systems that are not regularly maintained.
- Solidification of Foam Concentrate: In some cases, the foam concentrate can solidify or form deposits inside the pipes or nozzles. This can happen if the system is not used for a long time or if the temperature is too low.
Troubleshooting Steps
- Inspect and Clean Nozzles and Pipes: Regularly inspect the nozzles and pipes for blockages. Use a suitable cleaning agent to remove any debris or deposits. If necessary, disassemble the nozzles and pipes for a more thorough cleaning.
- Flush the System: Flush the fire - fighting system with clean water to remove any remaining debris or solidified foam concentrate. This should be done on a regular basis as part of the system's maintenance schedule.
Uneven Foam Distribution
Uneven foam distribution can occur when the foam is not spread evenly over the fire area. This can leave some parts of the fire unprotected, reducing the effectiveness of the fire - fighting operation.
Possible Causes
- Incorrect Nozzle Placement: If the nozzles are not placed correctly, the foam may not be distributed evenly. For example, if the nozzles are too close together or too far apart, the foam coverage may be uneven.
- System Pressure Variations: Variations in the system pressure can also cause uneven foam distribution. If the pressure is too low in some parts of the system, the foam may not be delivered effectively.
Troubleshooting Steps
- Adjust Nozzle Placement: Review the nozzle placement and make any necessary adjustments. Ensure that the nozzles are evenly spaced and positioned to provide optimal foam coverage.
- Check System Pressure: Measure the system pressure at different points in the fire - fighting system. If there are pressure variations, check for blockages, leaks, or problems with the pumps. Adjust the system pressure as needed to ensure even foam distribution.
3. Compatibility Issues
Incompatibility with Other Fire - Fighting Agents
In some fire - fighting scenarios, multiple fire - fighting agents may be used simultaneously. However, if the foam concentrate is not compatible with other agents, it can lead to reduced effectiveness or even dangerous reactions.
Possible Causes
- Chemical Incompatibility: Different fire - fighting agents have different chemical compositions. Mixing incompatible chemicals can cause the foam to break down or form hazardous substances. For example, some foam concentrates may react with dry chemical extinguishing agents.
- Physical Incompatibility: Physical properties such as viscosity and density can also affect compatibility. If the foam concentrate and another agent have different physical properties, they may not mix or work together properly.
Troubleshooting Steps
- Check Compatibility Charts: Consult the manufacturer's compatibility charts to determine if the foam concentrate is compatible with other fire - fighting agents. If there are any doubts, conduct small - scale tests before using the agents together.
- Separate Storage and Delivery: If the foam concentrate is not compatible with other agents, ensure that they are stored and delivered separately. This can prevent accidental mixing and potential problems.
Incompatibility with the Fire Type
Using the wrong type of foam concentrate for a specific fire can also lead to problems. Different foam concentrates are designed to be effective against different types of fires, such as Class A, Class B, or Class F fires.
Possible Causes
- Lack of Knowledge: Sometimes, users may not be aware of the specific requirements of different fire types and may use the wrong foam concentrate. For example, using a foam concentrate designed for Class B fires on a Class A fire may not provide the best results.
- Incorrect Selection: In some cases, the wrong foam concentrate may be selected during the installation or maintenance of the fire - fighting system.
Troubleshooting Steps
- Educate Users: Provide training and education to users about the different types of fires and the appropriate foam concentrates to use. Make sure they understand the importance of using the correct product for each fire type.

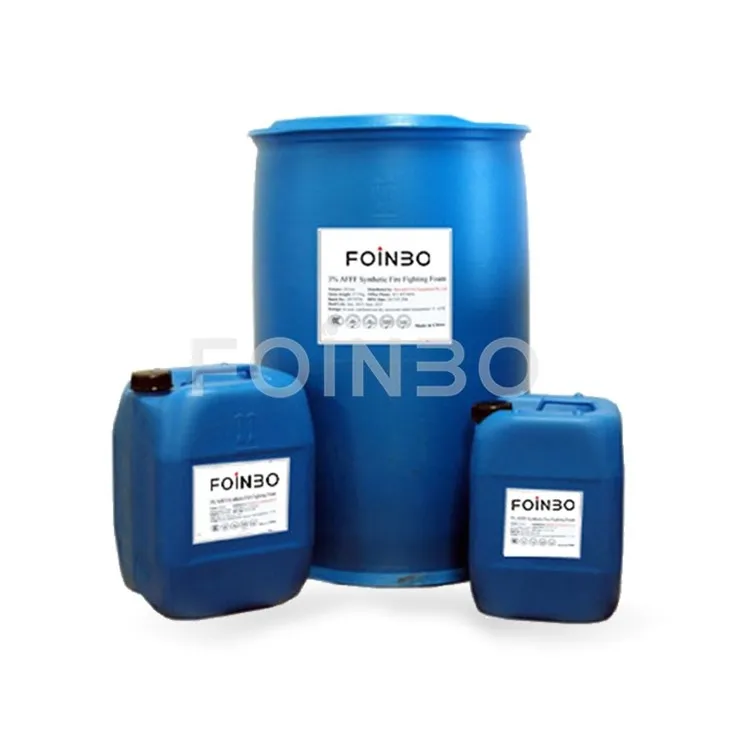

- Review System Design: Review the design of the fire - fighting system to ensure that the correct foam concentrate is being used. If necessary, make changes to the system to use a more suitable foam concentrate. For high - expansion foam needs, consider High Expansion Foam Concentrates which are specifically formulated for certain applications.
Conclusion
Troubleshooting problems with foam concentrate in a fire - fighting system requires a systematic approach. By identifying the possible causes of the problems and following the appropriate troubleshooting steps, you can ensure that your fire - fighting system operates effectively. As a foam concentrate supplier, I am committed to providing high - quality products and technical support to help you maintain your fire - fighting systems. If you are experiencing any issues with your foam concentrate or need advice on selecting the right product for your needs, please feel free to contact us for further discussion and procurement opportunities.
References
- Fire Protection Handbook, National Fire Protection Association
- Manufacturer's instructions and technical data sheets for foam concentrates
