Production introduction

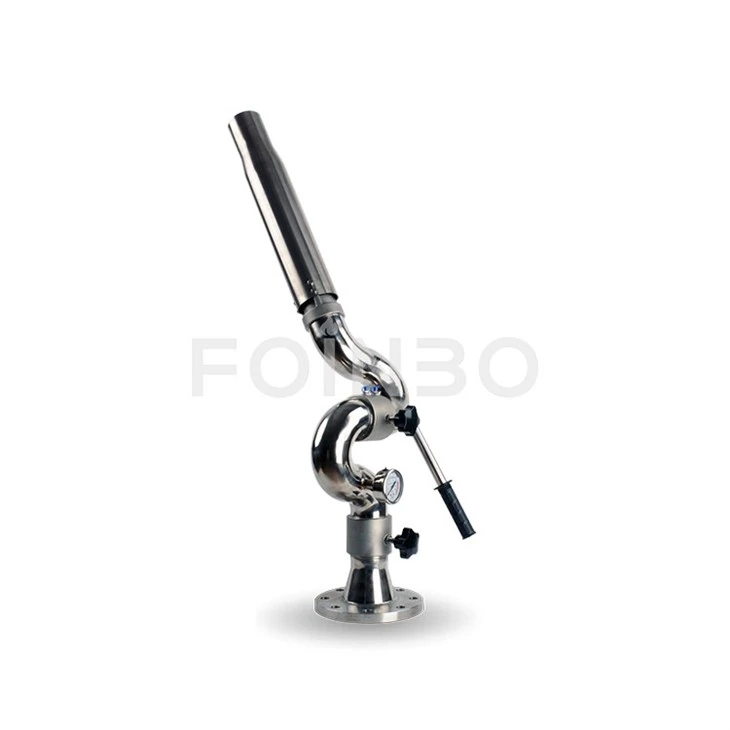

The Fire Fighting Monitor features a robust physical build. The monitor body of the Fire Fighting Monitor is constructed from SS304 stainless steel, which provides excellent resistance to corrosion and wear, ensuring its longevity even in harsh firefighting environments.
The monitor nozzle of the Fire Fighting Monitor is also made of SS304 stainless steel, maintaining the same level of durability and reliability. The handle of the Fire Fighting Monitor, crafted from the same SS304 stainless steel, offers a sturdy and comfortable grip for the operators. It is equipped with a straight steam function only, which is highly effective in concentrated firefighting efforts.
There are four models in the SFM_C SERIES of the foinbo® Fire Fighting Monitor: SFM 8/24C, SFM 8/32C, SFM 8/40C, and SFM 8/48C. Each model of the Fire Fighting Monitor has distinct performance parameters. The flow rates of these models range from 1440 L/Min to 2880 L/Min, all operating at a working pressure of 8 bar.
Products parameters
|
Model Number |
Flow Rate |
W.Pressure |
Water Max. Reach |
Foam Max. Angle |
Inlet Flange |
|
SFM 8/24C |
1440 L/Min |
8 bar |
50 meters |
42 meters |
4 inch/DN100 @ BS4504 |
|
SFM 8/32C |
1920 L/Min |
8 bar |
55 meters |
48 meters |
4 inch/DN100 @ BS4504 |
|
SFM 8/40C |
2400 L/Min |
8 bar |
60 meters |
55 meters |
4 inch/DN100 @ BS4504 |
|
SFM 8/48C |
2880 L/Min |
8 bar |
65 meters |
60 meters |
4 inch/DN100 @ BS4504 |
FAQ
Q: Can the foinbo® Fire Fighting Monitor be used for both water - based and foam - based firefighting?
A: Yes, the foinbo® Fire Fighting Monitor can be used for both water - based and foam - based firefighting. Each model has specified water and foam maximum reach distances, indicating its compatibility with both types of firefighting agents. However, make sure to follow the proper procedures for switching between water and foam operations.
Q: How does the straight - steam - only feature of the Fire Fighting Monitor affect its firefighting performance?
A: The straight - steam - only feature of the Fire Fighting Monitor allows for a more concentrated and powerful stream of water or foam. This is particularly useful for reaching distant fires or for penetrating through thick smoke and flames. It provides a focused approach to firefighting, which can be more effective in certain situations compared to a fog pattern.
Q: What is the maintenance requirement for the foinbo® Fire Fighting Monitor?
A: Regular maintenance of the Fire Fighting Monitor is crucial for its optimal performance. Inspect the stainless - steel components, including the body, nozzle, and handle, for any signs of damage or corrosion. Check the connection points and ensure that the inlet flange is in good condition. Lubricate any moving parts as per the manufacturer's instructions to ensure smooth operation.
Q: Can the flow rate of the foinbo® Fire Fighting Monitor be adjusted during operation?
A: The flow rate of each model of the Fire Fighting Monitor is fixed as specified in the parameters. It is not adjustable during operation. However, you can choose the appropriate model based on your specific firefighting requirements, as different models offer different flow rates.
Q: How does the foinbo® Fire Fighting Monitor compare to other models in the market in terms of reach?
A: The foinbo® Fire Fighting Monitor offers competitive reach distances for both water and foam. With water maximum reach ranging from 50 to 65 meters and foam maximum reach from 42 to 60 meters, it can effectively cover large areas. Compared to many other models in the market, it provides a good balance between flow rate and reach, making it suitable for a wide range of firefighting scenarios.
