Production introduction

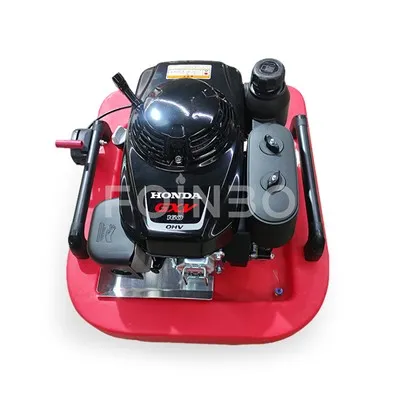

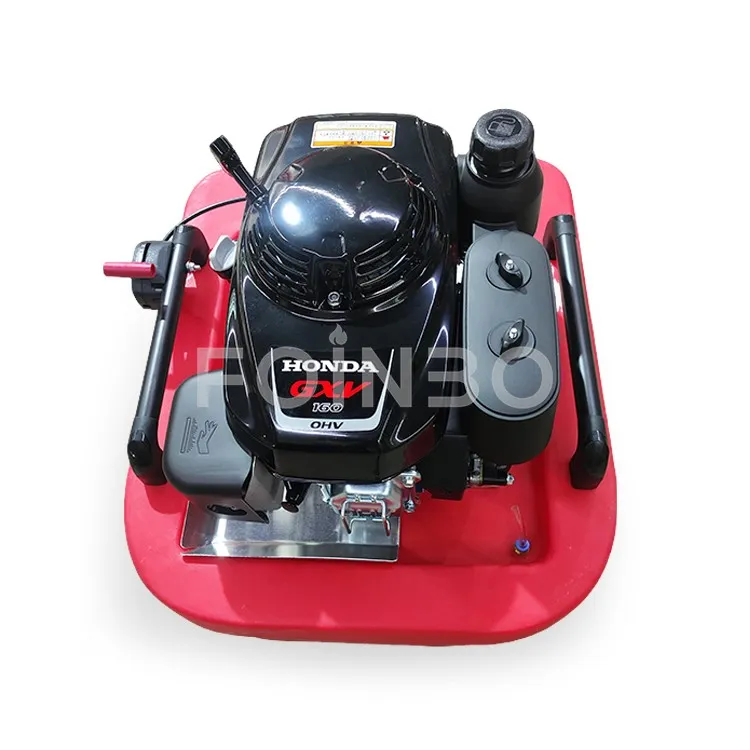

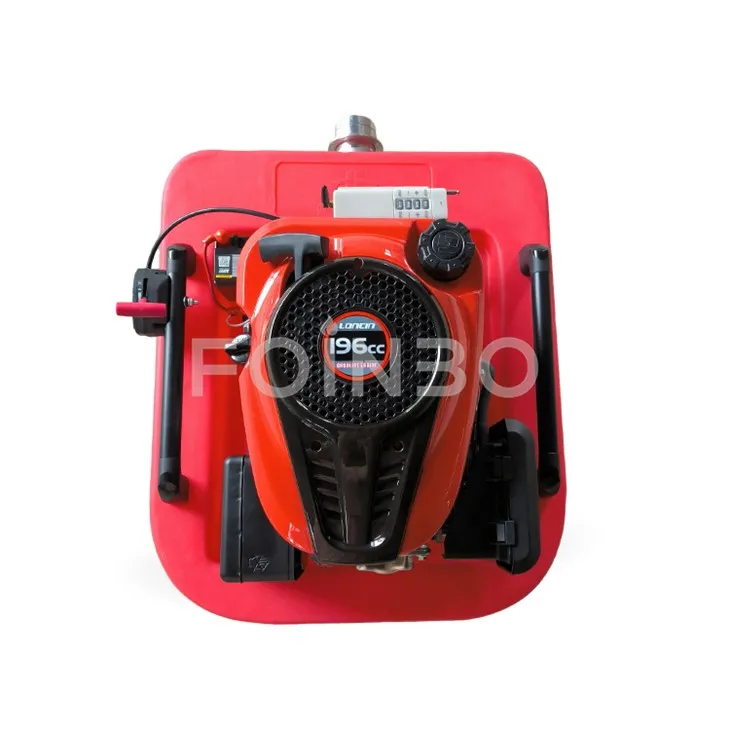

Portable Fire Pump
A portable fire pump is an indispensable piece of equipment in the realm of firefighting, especially in scenarios where access to a fixed water supply is limited or non - existent.
This compact and lightweight device is designed for easy transportation and quick deployment. It can be carried by firefighters to remote areas, such as wildlands, forests, or rural settings, where traditional fire trucks may struggle to reach. Its portability is a key advantage, allowing for immediate response to emerging fire situations.
Portable fire pumps are typically powered by gasoline engines, which provide the necessary energy to draw water from various sources like lakes, rivers, or even swimming pools. They are equipped with high - pressure hoses and nozzles that can deliver a powerful stream of water to extinguish flames effectively. The flow rate and pressure of these pumps can vary depending on the model, enabling them to handle different types and sizes of fires.
Max Power
Max Working Pressure
Max Flow Rate
Fuel Tank Capacity
Products parameters
| Model Number | TS2-5DS |
| Max Power | 10Ps |
| Cylinder Displacement | 85cc |
| Max Working Pressure | 2.3 Mpa |
| Max Head | 230m |
| Max Flow Rate | 300LPM |
| Inlet | 1.5" |
| Fuel Tank Capacity | 12L |
| Dimension | 420*290*170mm |
FAQ
What is a portable fire pump?
A portable fire pump is a compact, self-contained device designed to deliver high-pressure water or fire retardants to suppress flames. It is lightweight and easy to deploy in remote or hard-to-reach areas.
What are the main components of a portable fire pump?
The main components include an engine (usually gasoline-powered), a pump assembly (often centrifugal), suction and discharge hoses, a primer for initial water intake, and a frame for portability.
How does a portable fire pump work?
The engine powers the pump, which draws water from a source (e.g., lake, river) through the suction hose. The pump then pressurizes the water and delivers it through the discharge hose to extinguish fires.
What are the common types of portable fire pumps?
Common types include high-pressure pumps for wildland firefighting, medium-pressure pumps for fire attack, and high-volume pumps for water transfer.
