Hey there! I'm a supplier of foam chambers, and I often get asked about how to connect a foam chamber to a fire - fighting pipeline. It's a crucial process that can make a huge difference in the effectiveness of a fire - fighting system. So, let's dive right in and break it down step by step.
Understanding the Basics
First things first, you gotta understand what a foam chamber is and what it does. A foam chamber is an essential part of a fire - fighting system. It's designed to mix foam concentrate with water and then discharge a high - quality foam blanket over a fire. This foam blanket helps to smother the fire, cut off the oxygen supply, and cool down the burning area.
There are different types of foam chambers out there. For instance, you've got Low Expansion Foam Chambers. These are great for fires involving flammable liquids. They produce a foam with a relatively low expansion ratio, which means the foam is denser and more suitable for covering large surface areas of burning liquids.
Pre - installation Checks
Before you even think about connecting the foam chamber to the fire - fighting pipeline, you need to do some pre - installation checks.
Inspect the Foam Chamber: Make sure the foam chamber you've got is in good condition. Check for any signs of damage, like cracks or dents. If there are any issues, don't use it. Contact us, and we'll help you sort it out.
Check the Pipeline: Examine the fire - fighting pipeline thoroughly. Look for blockages, leaks, or any signs of corrosion. A damaged pipeline can affect the performance of the entire fire - fighting system. You should also ensure that the pipeline is the right size and material for the foam chamber you're using.
Verify the Foam Concentrate: Ensure that the foam concentrate you're going to use is compatible with the foam chamber. Different foam chambers are designed to work with specific types of foam concentrates. Using the wrong one can lead to poor foam quality and ineffective fire - fighting.
Tools and Materials You'll Need
To connect the foam chamber to the fire - fighting pipeline, you'll need a few tools and materials.
Tools: You'll need a pipe wrench, a hacksaw (if you need to cut the pipeline), a drill (for making holes if required), and a screwdriver. Make sure these tools are in good working condition.

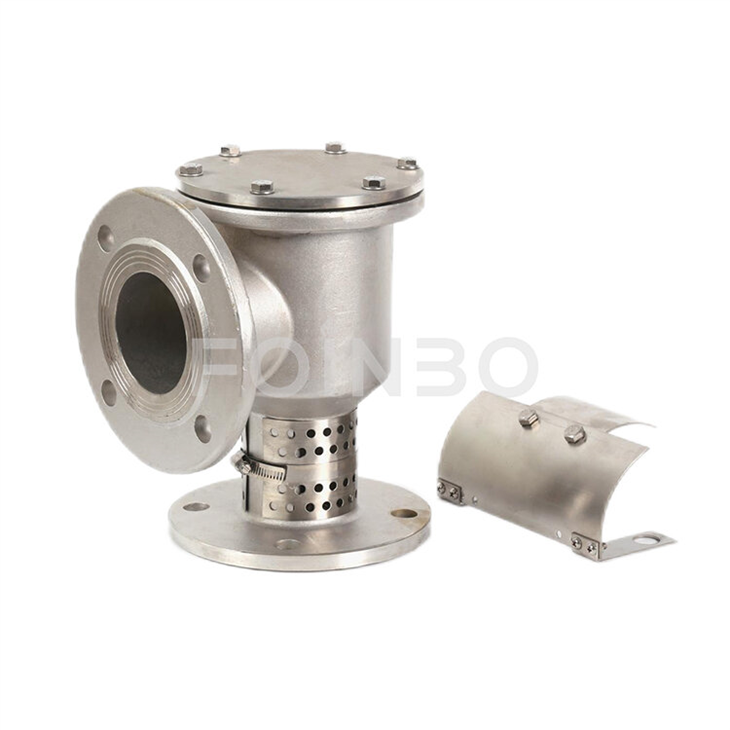

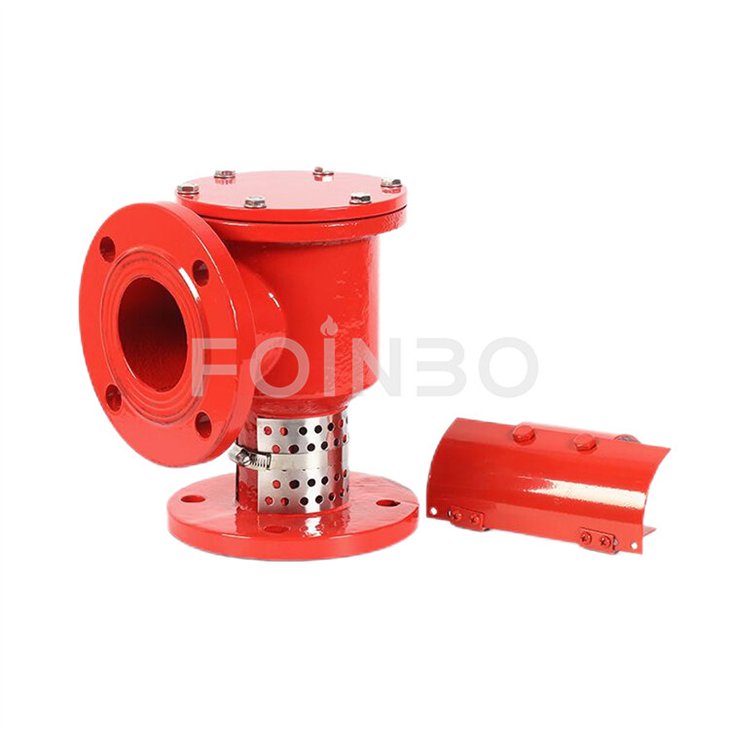

Materials: You'll need pipe fittings, such as elbows, tees, and couplings. You'll also need gaskets to ensure a tight seal between the foam chamber and the pipeline. And of course, you'll need the foam chamber itself. If you're looking for high - quality foam chambers, check out our Fire Foam Chambers and Foam Chambers Firefighting options.
Step - by - Step Connection Process
Now, let's get into the actual process of connecting the foam chamber to the fire - fighting pipeline.
Step 1: Measure and Cut the Pipeline (if necessary)
If the pipeline needs to be adjusted to fit the foam chamber, use a hacksaw to cut it to the right length. Make sure the cut is clean and straight.
Step 2: Prepare the Pipe Fittings
Take the pipe fittings you've got and clean them thoroughly. Apply a thin layer of pipe sealant to the threads of the fittings. This will help prevent leaks.
Step 3: Connect the Fittings to the Pipeline
Use a pipe wrench to tighten the pipe fittings onto the pipeline. Make sure they're tightened securely, but don't over - tighten them, as this can damage the fittings or the pipeline.
Step 4: Mount the Foam Chamber
Place the foam chamber in the right position on the pipeline. Use the drill to make holes if necessary, and then secure the foam chamber using screws or bolts. Make sure the foam chamber is level and firmly attached.
Step 5: Connect the Foam Chamber to the Pipeline
Attach the foam chamber to the pipeline using the prepared pipe fittings. Again, use a pipe wrench to tighten the connections. Ensure that there are gaskets between the foam chamber and the pipeline to create a tight seal.
Step 6: Test the Connection
Once the foam chamber is connected, it's time to test the connection. Turn on the water supply to the fire - fighting pipeline and check for any leaks. If you find any leaks, tighten the connections further or replace the gaskets.
Post - installation Checks
After you've successfully connected the foam chamber to the fire - fighting pipeline, there are still some post - installation checks you need to do.
Foam Quality Test: Run a foam quality test to ensure that the foam produced by the foam chamber is of good quality. This involves discharging a small amount of foam and checking its expansion ratio, stability, and coverage.
Flow Rate Test: Check the flow rate of the water through the pipeline and the foam chamber. The flow rate should be within the recommended range for the foam chamber. If it's too low or too high, it can affect the performance of the foam chamber.
Maintenance Tips
To keep your foam chamber and fire - fighting pipeline in good working condition, you need to do regular maintenance.
Clean the Foam Chamber: Periodically clean the foam chamber to remove any debris or residue. This will help ensure that the foam chamber functions properly.
Replace the Foam Concentrate: Foam concentrate has a shelf life. Make sure to replace it regularly to ensure that it's effective in case of a fire.
Inspect the Pipeline: Regularly inspect the fire - fighting pipeline for leaks, corrosion, or blockages. Address any issues promptly.
Conclusion
Connecting a foam chamber to a fire - fighting pipeline isn't rocket science, but it does require careful planning and attention to detail. By following the steps we've outlined above, you can ensure that your fire - fighting system is set up correctly and ready to handle any fire emergency.
If you're in the market for high - quality foam chambers or need more information on installation and maintenance, we're here to help. Our team of experts can provide you with all the support you need. Whether you're a small business owner or part of a large industrial facility, having a reliable fire - fighting system is crucial. So, don't hesitate to reach out to us for all your foam chamber needs. Let's work together to keep your property and people safe from fires.
References
- NFPA 11: Standard for Low -, Medium -, and High - Expansion Foam
- Manufacturer's installation and operation manuals for foam chambers and fire - fighting pipelines
